4U Modular Power Cables
from $35.00
The 4P XLR Serge Power Cable is a 6' Power cable compatible with Serge format Power
supplies using 4 pin XLR connectors on both the Power Supply, and the Boat.
We have 4 available options (see below).
DETAILS
Length: 6 feet
Material: High quality gray PVC insulator, 4 conductor 18 gauge wire, Neutrik XLR connectors
Model:
Quantity:
The Serge Modular Power Cables are a 6' Power cable for Serge format Power
supplies.
Available in many different options... Please read closely and ask questions if you're unsure about anything!
There are labeled pictures above to help make the connector types more clear.
4P XLR (XLR4):
The XLR4 options use 4 pin XLR connectors on both the Power Supply, and the Boat. (roughly 6' in total length).
There are three varieties available:
4U Power Cable Male - Female
4U Power Cable Male - Male
4U Power Cable Female - Female
STS:

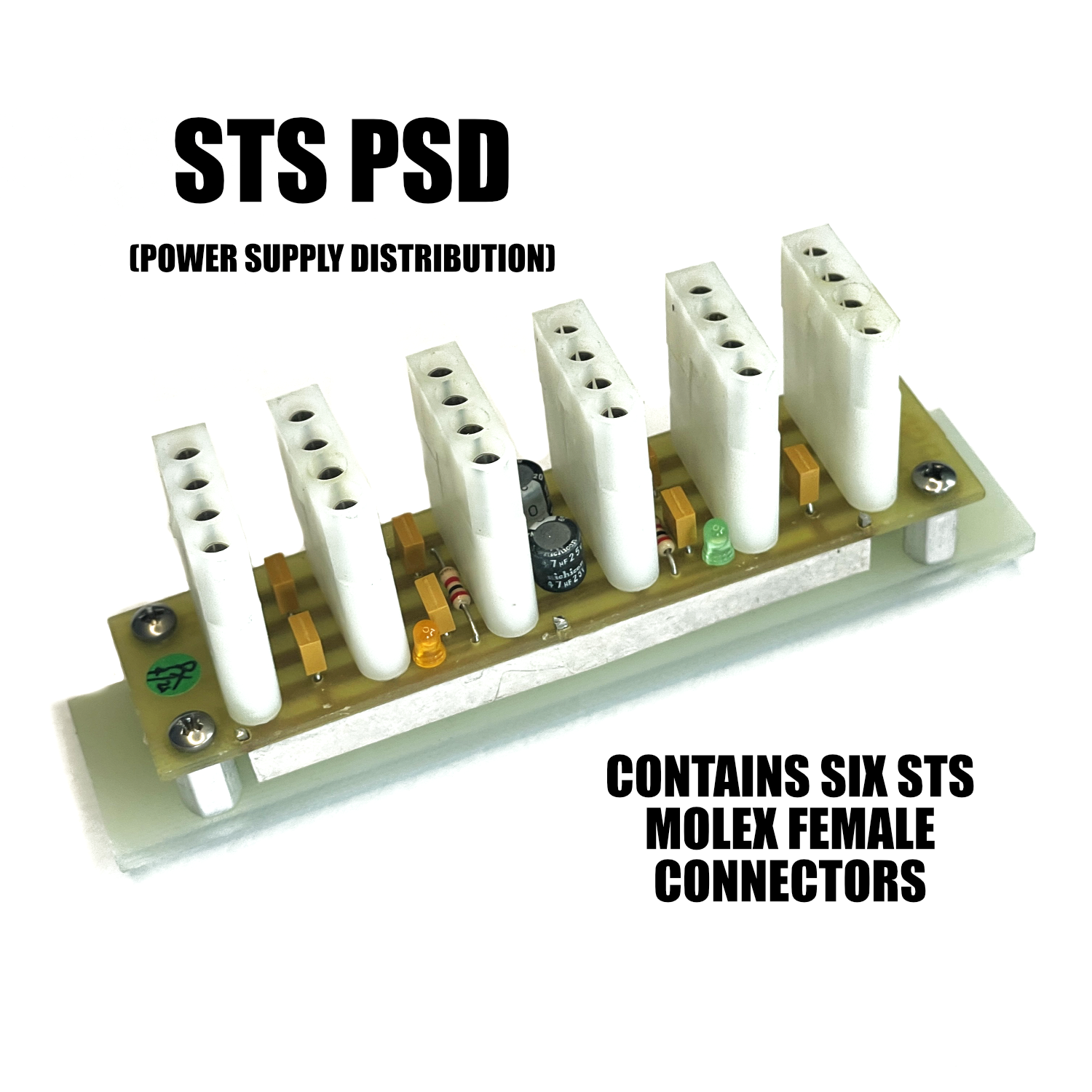

The STS PSD (pictured above) is a power distribution board for plugging multiple boats or M-Class Panels into. While we prefer to distribute boats / full panels by means of dedicated power cables
coming from your main PSU system, Sound Transforms Systems (STS) made Power supplies that typically had one cable that ran to a PSD and then distributed the power from there.
The STS variety typically is a 2 section cable that has a Male 4Pin XLR (XLR4) (This can be customized for older STS) on the
power supply end, and a set STS style molex connectors (TE 770078-1 & TE 770075-1, male: longer end, female: pigtail end) near the end of the cable that splits
the cable into two sections. The shorter end (Pigtail) is installed into the boat's power distribution and hangs
out the back of the boat through a large hole to allow low profile mounting into cases, etc and quickly removed for servicing.
These are commonly found used on STS and DIY based systems. (roughly 6' in total length)
Pigtails: (Typically 18" in length unless stated)
The pigtails come in multiple varieties, the only differences is which connectors are on the very ends of the cable.
The connectors are either a 0.156" Molex Connector, which plugs into the common
4 pin based header found on CGS/DIY pcb's, and the others are STS style Molex connectors (TE 770078-1 & TE 770075-1) which are commonly found on STS style
modules and PSD's.
STS Female to MTA156 Female
STS Female to STS Female
STS Female to STS Male
STS Male to STS Male
Extension Cables: Not typically recommended for fear of introducing noise or potential voltage loss... But they are available!
STS Male to STS Female XL (6' Long Extension)
STS Female to STS Female XL (6' Long Extension)
STS Male to STS Male XL (6' Long Extension)
STS PSD to RS Module (XLR4), This would allow you to adapt either an RS style XLR4 boat to an STS based power system or vice versa (depending on the connector genders)
18" cable made with the male or female STS molex style header to XLR4 (Female or Male)
STS Male to XLR4F (Female)
STS Female to XLR4F (Female)
STS Male to XLR4M (Male)
STS Female to XLR4M (Male)
Made from 20AWG Stranded wired with two ground conductors. The
power cables are able to be customized (email for customization), but
6’ length (1.8meters) is the default and recommended maximum length
to ensure better performance.
Cables are built to order so please allow
a few extra days for shipping. Thank you!
Custom wiring can be accommodated to support STS or other various
wiring standards. Please double check your pin out requirements
before emailing. Low-Gain Electronics will not be held liable
for damage caused by incorrect wiring of power connectors.
