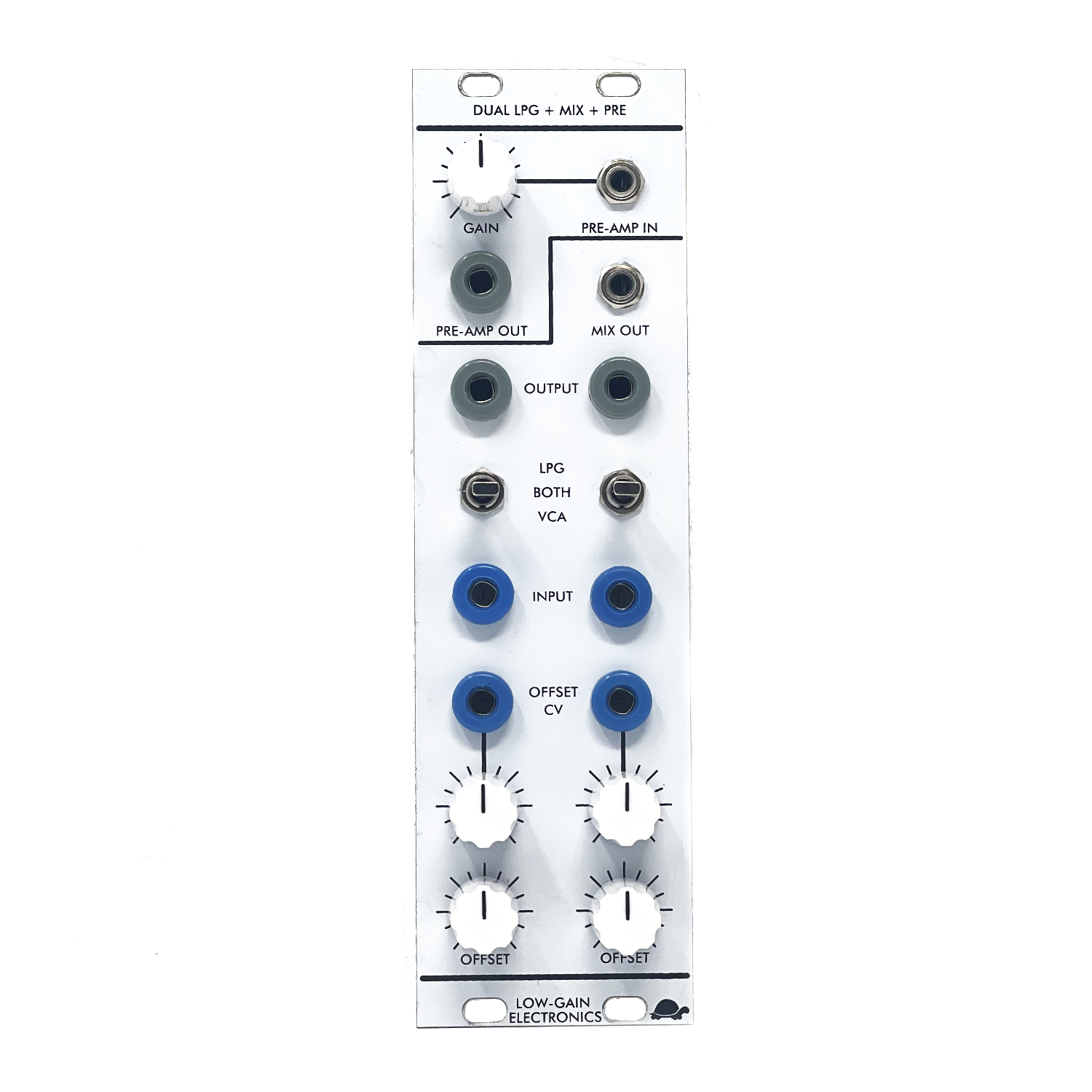

Dual Low-Pass Gate + Pre-Amp + Mixer
Inspired by the iconic input/output section of the 208 Music Easel, this versatile module combines two independent 5C3/2 based vactrol low-pass gates with advanced control features. Each gate includes CV input attenuation, offset adjustment, and selectable modes—LPG, Both, or VCA—allowing for flexible signal shaping. Outputs are available individually via dedicated banana jacks, while both signals are also mixed together and routed to a convenient 3.5mm (1/8") output jack.
The module’s top section features a built-in pre-amplifier designed to elevate low-level sources—such as piezo pickups—to modular line levels. With a fixed gain range from 5x to 30x, the pre-amp ensures your delicate signals are cleanly boosted and available through a banana output for seamless integration into your setup.
Alternative 5C3/2 Vactrol:
Mouser: 846-NSL-37V5C3/2
Digikey: 209-NSL-37V5C3/2-ND
DPDT (On-Off-On) Toggle Switch wiring example
** 4U Modular is a term used for the format most commonly known as “Serge Format” or “Loudest Warning Format”. Out of respect for the ever growing format, 4U Modular is the easiest way to refer to it. More Specifically it refers to the panel height and mounting hole style. 4U Modular will patch up just fine with other 4U "Serge" formats such as "Random Source", but it will not mount in RS boats or Buchla Boats (or power off Buchla power for that matter). An info page about this will be added to the website soon to make this a lot more easy to understand.
https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=17d51599fe
LGE021 DIY BUILD Documenation:
MOUSER CART - Does not include headers, stand offs, screws, pots or knobs. Most of these items can be obtained at Tayda Electronics (check Mechanical Parts BOM)
LGE021 Bill of Materials (If your signal sounds clipped in LPG/Both mode, check R14 & R112… Try 1K instead of 15K. VCA Mode is naturally quieter than the Both or LPG Modes)
LGE021 PCB Layout w/ Designators
LGE021 Schematic Page 1
LGE021 Schematic Page 2
J201’s Installed instead of 2N3819’s
LGE021C Bill of Materials
LGE021C Layout w/ Designators
LGE021C Wiring Diagram / Schematic
Mechanical Parts BOM generally required for building Low-Gain Electronics Modules
Details:
PCB Size: 6” x 2”
Current Draw: TBD
